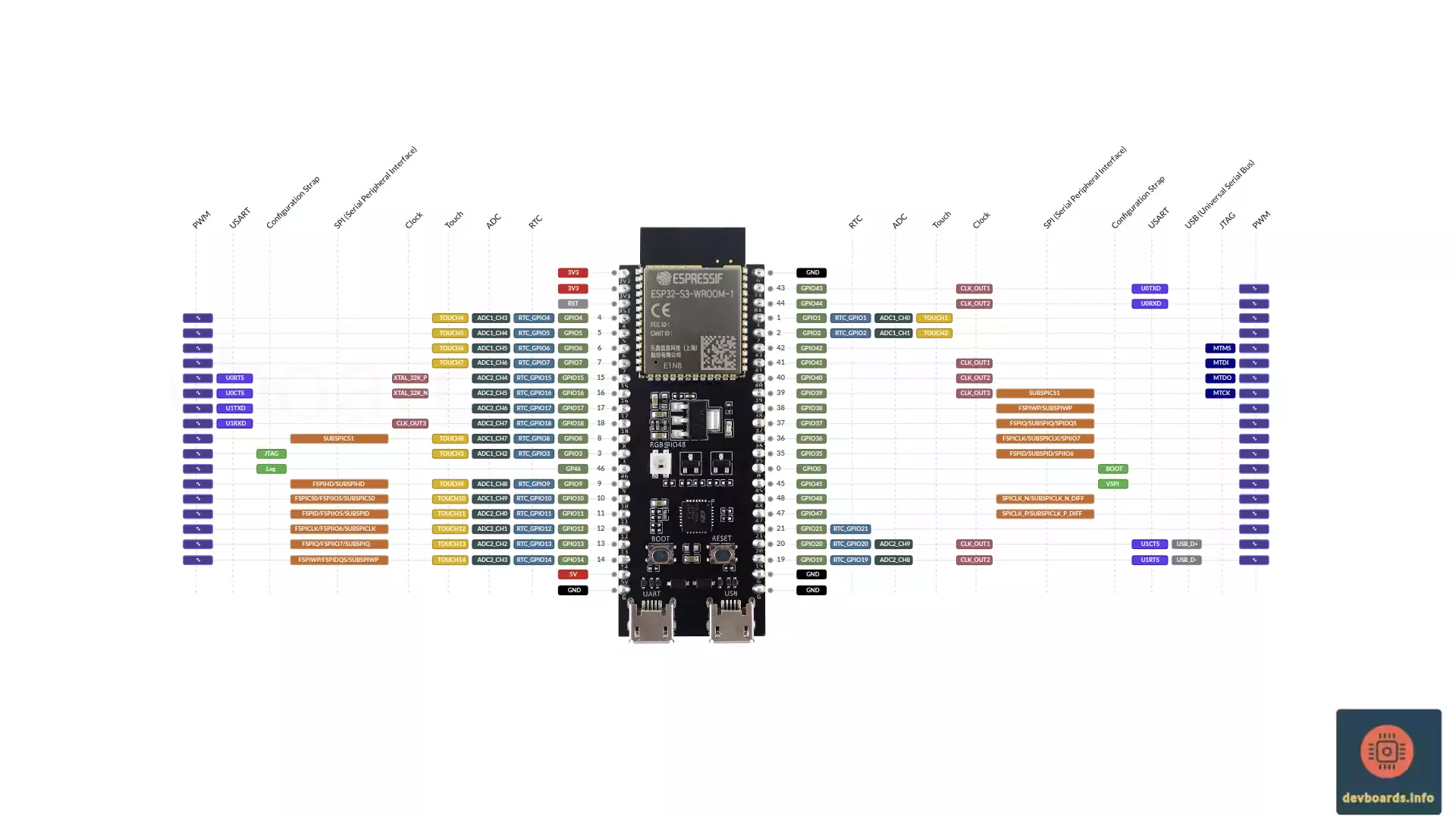

ESP32-S3-DevKitC-1 Pinout

The ESP32-S3-DevKitC-1 is a versatile development board designed to facilitate prototyping and testing for applications leveraging the powerful ESP32-S3 SoC. Equipped with Wi-Fi and Bluetooth 5 (LE) capabilities, this board targets IoT, AIoT, and low-power applications. It provides developers access to all major features of the ESP32-S3, including its dual-core processor, integrated AI acceleration, and enhanced security features, making it suitable for edge computing and AI applications. The ESP32-S3-DevKitC-1 supports various programming environments like Espressif IDF and Arduino IDE, making it a flexible choice for both professionals and hobbyists.

Key Technical Specifications:

• ESP32-S3 (Xtensa LX7 dual-core processor)
• Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 5 (LE)
• 4/8/16/32 MB SPI Flash (with options for external flash)
• 512 KB on-chip SRAM, with support for external PSRAM
• 2 USB Micro B port with native USB 1.1 (both host and device modes)
• Vector instructions for AI/ML operations
• 36 programmable GPIOs
• SPI, I2C, I2S, UART and ADC
• Builtin RGB LED
• Ability to configure most peripherals to any GPIO pins via GPIO Matrix
• LCD and Camera interfaces
• Touch and temperature sensors
• PWM, LED PWM and Motor Control PWM (MCPWM) peripherals
• Remote Control for infrared remote signal
• Pulse Counter
• SDIO Host and GDMA
• Full-speed USB 2.0 OTG and USB Serial/JTAG Controller
• TWAI® controller (compatible with ISO11898-1)
• Timers and Watchdogs
